AC10A-40A, Modular Type, Filter Regulator, Lubricator

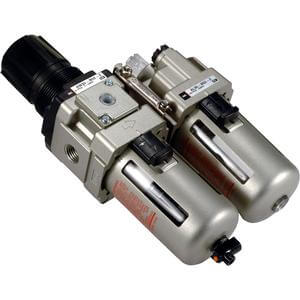

AC10A-40A, Modular Type, Filter Regulator, Lubricator Show Description

Basic F.R.L. function with filtration and regulation combined in a common unit, followed by lubrication.  The current AC series is no longer being produced and is subject to available quantities only.  For size 10 models, please utilize the AC-A series.  For sizes 50~60, please utilize the AC-B series.  For sizes 20~40, please utilize the AC-A or AC-B series as appropriate to your performance and option needs.

  • Filter regulator and lubricator unit
  • Clean looking, modular design
  • Improved installation
  • Compact spacer with bracket reduces total assembly space
  • Optional embedded pressure gauge
  • Rc(PT), G(PF) or NPT threads
