AC20C-40C, Modular Type, Filter/Regulator/Mist Separator

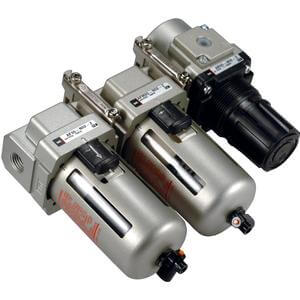

AC20C-40C, Modular Type, Filter/Regulator/Mist Separator Show Description

Simple filtration/regulation assembly when higher level of filtration is required and lubrication is not needed.  5 micron filter acts as a pre-filter for the 0.3 micron mist separator.  The current AC series is no longer being produced and is subject to available quantities only.  For sizes 20~40, please utilize the AC-A or AC-B series as appropriate to your performance and option needs.

  • Air filter, mist separator and regulator unit
  • Clean looking, modular design
  • Energy saving with high flow rate
  • Compact spacer with bracket reduces total assembly space
  • Optional embedded pressure gauge
  • Improved installation
  • Rc(PT), G(PF) or NPT threads
