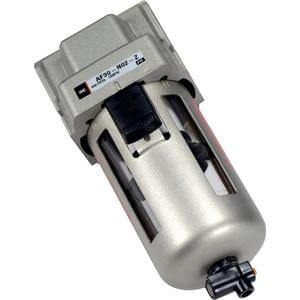

AF10~60, Modular Style, Air Filter, Non-standard Filtration

AF10~60, Modular Style, Air Filter, Non-standard Filtration Show Description

General purpose filtration with modular connectivity to other SMC air preparation components when alternate filtration grades to the standard 5 micron filtration are required.  Choose from 2, 10, 20, 40, 70 and 100 micron.  The current AF series is no longer being produced and is subject to available quantities only.  Please utilize the AF-A series for your current designs

  • Modular air filter
  • Rated filtration (µm): 2, 10, 20, 40 , 70 or 100
  • Prevents contamination
  • Improved water separation efficiency extends the service life of
    filter elements
  • Rc, NPT or G(PF) type threads
