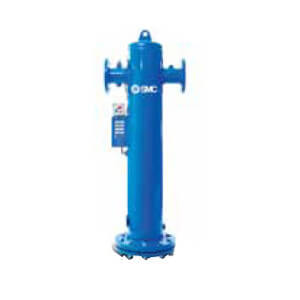

AFW, Large Capacity Compressed Air Flanged Filter

AFW, Large Capacity Compressed Air Flanged Filter Show Description

AFW large capacity compressed air filters and centrifugal water separators ensure high quality compressed air, which is essential to pneumatic and automation systems.  Correct air preparation minimizes component failure, increases the operating life of equipment and reduces energy consumption.  Filters and separators are suitable for use with mineral and synthetic oils, plus oil-free compressed air applications.  Depending on the model, flow capacities are available from 150 to 16100 CFM.  The AFW is available for US and Canadian customers only.

  • 12 flanged models with flow capacities up to 16,100 SCFM
  • ANSI flange (ASME "U" stamped and CRN approved)
  • Three filtration/coalescing grades available as well as activated carbon
  • Differential pressure indicator and manual drain standard
  • 235 psi max. operating pressure
