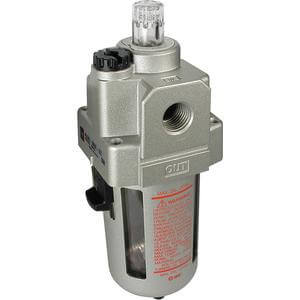

AL10-60, AL Lubricator

AL10-60, AL Lubricator Show Description

Series AL modular style lubricators provide accurate lubrication of downstream equipment. The oil drop rate is adjustable depending on equipment requirements. The modular AL design allows connection with other SMC air preparation equipment. The current AL series is no longer being produced and is subject to available quantities only. Please utilize the new AL10~60-A series for your product design.

  • Modular type lubricator
  • Improved operability
  • Increased capacity by reducing the thickness of resin case
  • Body sizes available: 10 ~ 60
  • Thread type: M5, Rc(PT), NPT, G(PF)
  • Port sizes: M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1
  • Variety of options available
