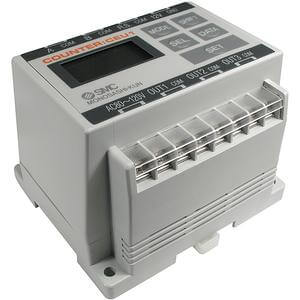

CEU1, 3 Point Preset Counter for CE1 Series

CEU1, 3 Point Preset Counter for CE1 Series Show Description

The CE1 series is a stroke reading cylinder with position feedback. The home position can be anywhere within the cylinder stroke. Measurement is possible throughout the full stroke range. The CE1 series is offered in 6 bore sizes and is auto switch capable.

  • Output terminal: 3 points
  • DIN rail mountable
  • Hold output, comparison output, one shot output
  • NPN or PNP
