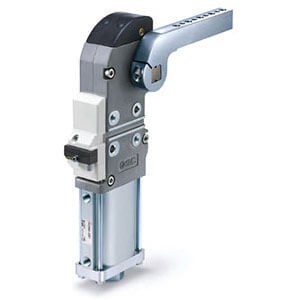

CKZ3N, Power Clamp Cylinder Arm

CKZ3N, Power Clamp Cylinder Arm Show Description

CKZ3N power clamp arm comes in a variety of NAAMS standard designs. Painted arm is also an available option.

  • Arm for CKZ3N
  • 50, 63 (mm) bore
  • Styles: straight plain or machined, offset plain or machined
  • Available with paint
