IISA2, Manifold for ISA2, With Control Unit

IISA2, Manifold for ISA2, With Control Unit Show Description

The ISA series is a non-contact style air catch sensor for applications requiring confirmation of work present for machining operations. Due to the construction of the sensor, fluctuations in the supply pressure does not influence operations. The ISA series is IP66 rated and is dust proof and drip proof.

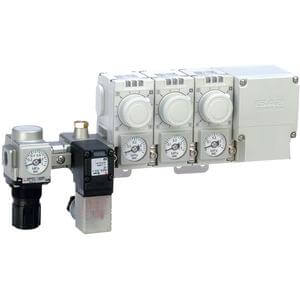

  • Manifold for ISA2 air catch sensor
  • Available with or without control unit
  • 6 stations maximum
  • Options: bracket, DIN rail
