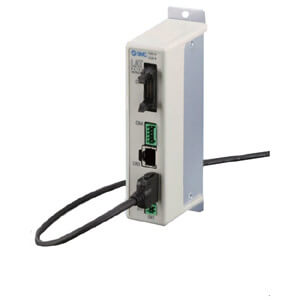

LATC4, Card Motor Controller for LAT3 Series

LATC4, Card Motor Controller for LAT3 Series Show Description

The LATC4 controller exclusively operates the LAT3 magnetic drive card motor. Laptop software is easy to follow, including screens for step data and I/O setup, as well as monitoring and testing operations. The easier of two step data entry modes requires only target position, positioning time, and load weight.

  • Easy programming with two methods for step data entry
  • Takt time entry: time, target position, load mass
  • Speed entry: speed, target position, acceleration, deceleration, load mass
