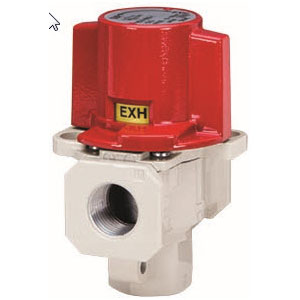

VHS20-50 3 Port, Residual Pressure Relief Valve, Modular

VHS20-50 3 Port, Residual Pressure Relief Valve, Modular Show Description

The VHS series is a safety manual switching valve for preventing accidents that could be caused by the residual pressure while performing maintenance service on a pneumatic system. The VHS is easy to operate and the direction of air flow can be verified by the orientation of the handle. The valve is compact yet provides a large capacity.

  • Pressure relief, 3 port valve
  • Accessory for AC series
  • Body sizes: 1/8, 3/8, 1/2, 3/4
  • Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1
  • Thread types: Rc, NPT, G
