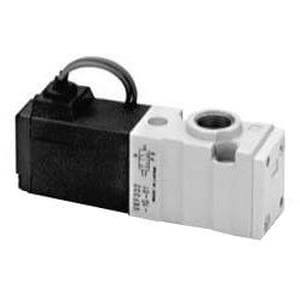

VKF300, 3 Port Direct Operated Poppet Solenoid Valve, Metric

VKF300, 3 Port Direct Operated Poppet Solenoid Valve, Metric Show Description

A 3-port, direct operated poppet solenoid valve, series VKF300 is compact (body width 18mm), yet still provides a large flow capacity.  The VKF300 manual overrides are located in 2 directions, on the top and on the side of the valve, providing easy manual operation unaffected by mounting space and piping direction.  FKM (Fluoro rubber) is used for the fluid-contact rubber materials, allowing use even in ozone environments.

  • Direct operated style, 3 port single solenoid.
  • Body ported and base mounted types
  • Port size: M5, 1/8
  • Rc, G, NPT or NPTF threads
  • Available with CE approval
