VVX, Energy Saving Type, Manifold Base for 2 Port Solenoid Valve for Water and Oil

VVX, Energy Saving Type, Manifold Base for 2 Port Solenoid Valve for Water and Oil Show Description

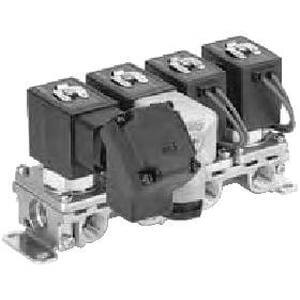

Manifold Base for VXE series solenoid valves for water and oil. Available with Rc, NPTF, NPT and G thread port.

  • Port size (OUT port): Rc1/8, Rc1/4
  • Seal material available: NBR, FKM, EPDM
  • Rated voltage: 12VDC, 24VDC
  • Applicable number of stations: 2 to 10
