XGT, High Vacuum Slit Valve

XGT, High Vacuum Slit Valve Show Description

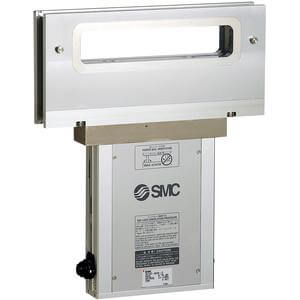

Series XGT slit valve is suitable for the partition valve between the load lock chamber and the transfer chamber, and between the transfer chamber and the process chamber in semiconductor manufacturing equipment, etc.

  • Gasket with wiper: protection of bellows
  • Rubber cushions for opening and closing:  impact absorption
  • Enc lock mechanism
  • Service life of two million cycles
Configuration Options



Highlight the number above and click Ctrl+C (⌘+C) to copy.

Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Valve Size Configuration Status
Valve Type Configuration Status
Opening Window Size Configuration Status
Gate O-ring Material Configuration Status
Auto Switch & Connector Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.

Downloads

The part number needs to be complete in order to view/download CAD Models.

Model does not exist, please email cad@smcusa.com with the complete part number, CAD file format and version required.

CAD Downloads

Download CAD File

View CAD Models

View 3D Model View 2D Model

Product Catalog

Series Catalog
