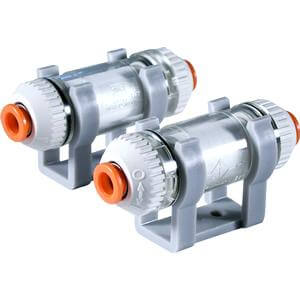

ZFC, Air Suction Filter with One-touch Fitting

ZFC, Air Suction Filter with One-touch Fitting Show Description

Series ZF are air suction filters that prevent trouble in vacuum equipment caused by contaminants in the air. They are light weight and compact. ZF filter elements are easily replaced without tools.

  • IN/OUT straight piping
  • Applicable tubing sizes: metric ø2, ø3.2, ø4, ø6, ø8 and inch  1/8", 5/32", 1/4", 5/16"
  • One-touch fittings for easy installation and removal
  • Lightweight molded resin parts
  • Cartridge type allows element replacement
