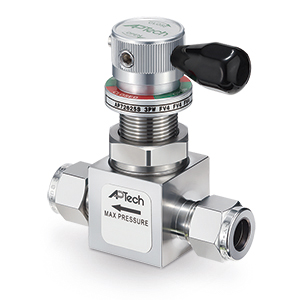

AK4600 Diaphragm Valves for General Applications, Manually Operated Type

The Series AK4600 Manually Operated Diaphram Valves are designed for use in a wide variety of applications, from semiconductor to general. Multiple port available in various configurations: compression, Rc, R, NPT.

  • Body material: 316SS
  • Max operating pressure psig (MPa): 300 (2.1)
  • Connections: compression, Rc, R, NPT
  • Knob, indication window
  • LOTO standard with with AK4657/3659, optional AK4625
  • Indicator switch available as an option (AK4650)
