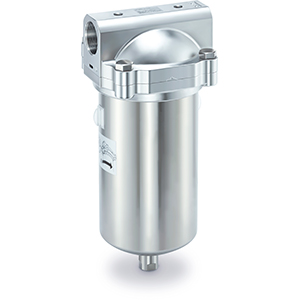

AMD70~90DS, Main Line Filter, Stainless Steel

Series AMD is a secondary stage of coalescing filtration to remove particles of 0.01 micron from compressed air.  Applied properly, they can reduce oil carryover to 0.1 mg/m³ / 0.08 ppm or less (ISO8573-1 class 2 oil carryover).

  • Particulate filtration, oil mist separation
  • Available port sizes: 1", 1-1/2", 2" (PT, NPT or G)
  • Nominal filtration rating: 0.01 μm (99% efficiency)
  • ISO8573-1 air quality class: 1; - ;2
AMD70~90DS, Main Line Filter, Stainless Steel
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Size Configuration Status
Thread Configuration Status
Port Size Configuration Status
Drain Exhaust Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
