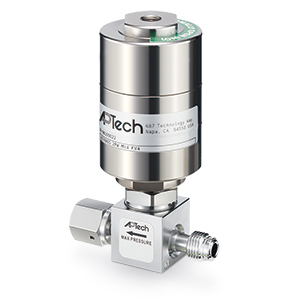

AZ3000, High Pressure Type, Diaphragm Valve, Air Operated for Ultra High Purity

Series AZ3000 is a high pressure type, ultra high purity (UHP) diaphragm valve for gas delivery in semiconductor and other clean industries.  This series is available in air operated.

  • Suitable for UHP gas line supply line
  • Body material: 316L SS
  • Pneumatically actuated normally closed or normally open
  • High Pressure: Max 4500 psig (31 MPA)
  • Indicator switch available as an option
