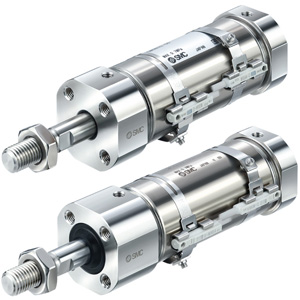

CM5, Stainless Steel Cylinder, Double Acting, Single Rod

CM5 Series is a compact stainless-steel cylinder that utilize food grade NSF-H1 grease (for the improved water resistant type). All external parts are used for cylinder body, mounting bracket, mounting bolt and accessories, ensuring superior corrosion resistance.

  • Available with scraper for superior water resistance
  • Bore size (mm): 20, 25, 32, 40
  • Option for laser-printed product label
  • Double Acting, Single Rod
