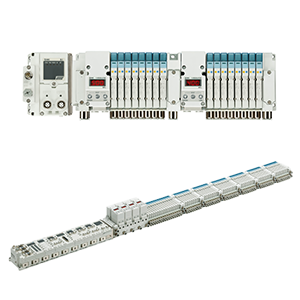

JSY3000-P, Electro-pneumatic regulator integrated-type manifold, 64 Station Compatible, with EX600

>JSY-P is a compact 128 input SI unit capable manifold. It utilizes EX600 with Profinet, Ethernet/IP, or EtherCAT. The manifold can control 64 double solenoid or 128 single solenoid valves at one time. Manifold blocks come in sets of four with internal wiring. It also allows up to four electro-pneumatic regulators to be added.

  • Solenoid valves and electro-pneumatic regulators can be connected to the same manifold.
  • Equipment integration allows for the centralized management of control and wiring as well as reduced wiring.
  • Valve stations and Number of outputs: For 4 to 64 stations and up to 128 points
  • Stations are only available in multiples of 4.
  • I/O unit stations: Max. 8 stations
JSY3000-P, Electro-pneumatic regulator integrated-type manifold, 64 Station Compatible, with EX600
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Series Configuration Status
Type Configuration Status
SI Unit Configuration Status
SI Unit Common, End Plate Configuration Status
I/O Unit Stations Configuration Status
Valve Stations Configuration Status
P,E Port, SUP/EXH Assembly Configuration Status
Intermediate SUP/EXH block Configuration Status
A,B Port Size Configuration Status
Mounting Configuration Status
DIN Rail Option Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
