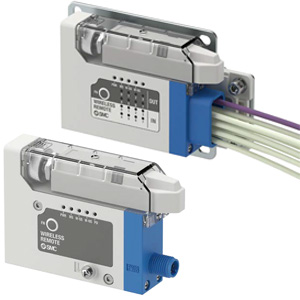

EXW1 Compact Wireless Remote

EXW1 series is a compact and lightweight wireless communication module that is intended to be installed on industrial robot or moving fixtures. EXW1-RD supports a faster wireless communication up to 1 Mbps and external antenna to allow installation within metal shielded locations and locations that have obstructed line of sight. EXW1 remote unit available as Input, Output or Mixed Input & Output. This product is digital as the original is analog.

The EXW1 wireless cannot be used in countries where wireless is not supported. Refer to the catalog for details of countries where wireless is supported.

  • Supports direct mounting of wireless adapter (EXW1-A1 series)
  • Output type: IO-Link, PNP, NPN, Digital
  • 16 digital inputs, 16 digital outputs, 8 digital inputs/outputs
  • IP67/M12 grommet connector type
  • Enclosure: IP67 (IO-Link), IP20 (Digital I/O)
  • Compatible with EX260 and EX600

  • Measurement/log function

    - Measurement of ON/OFF time between inputs and between inputs and outputs

    - Measurement of the number of ON/OFF operations of inputs and outputs

EXW1 Compact Wireless Remote
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Type Configuration Status
Type Configuration Status
Polarity Configuration Status
Connector/Number Of Ports Configuration Status
Antenna Specification For Communication Configuration Status
Bracket Type Configuration Status
Option Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.

Downloads

The part number needs to be complete in order to view/download CAD Models.

Model does not exist, please email cad@smcusa.com with the complete part number, CAD file format and version required.

CAD is not currently available for auto generation of . The file can be requested by contacting CAD@smcusa.com

CAD Downloads

Download CAD File

View CAD Models

View 3D Model

Product Catalog

Series Catalog

RoHS Certificate

Download Certificate
