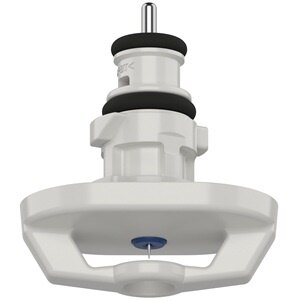

IZSW10 Emitter Cartridges

The IZSW10 emitter cartridges are compatible exclusively with the IP66-rated IZSW10 Bar Ionizer. A new IZSW10 bar comes equipped with your choice of cartridges. These cartridges can also be purchased separately as end-of-life replacements or upgrades for the original equipment. Replacement requires a simple quarter turn and gentle pull to release from the bar. The cartridge design protects the emitter from accidental contact for user safety as well as to avoid damage. Air flow around the emitter is designed to reduce contamination while improving ion transfer, yielding longer life intervals and 14% faster static discharge times. Light applied air purge during water exposure maintains IP66 rating for the ionizer bar.

  • Emitter material: Tungsten
  • Options: Low, medium and high flow (IP50) or airless (IP66)
  • Cartridges are color coded for easy identification
IZSW10 Emitter Cartridges
Configuration Options


Copy Configuration Number

Product Options

List updates based on your most recent configuration changes.
Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Cartridge Type Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
