JSY3000-L, 64 Station Compatible, with EX260

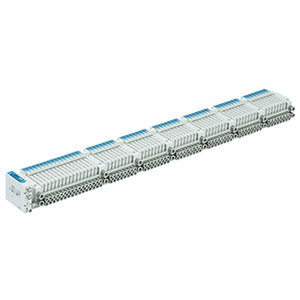

JSY-L is a compact 128 input SI unit capable manifold. It utilizes EX260 with Profinet, Ethernet/IP, EtherCAT, or IO Link. The manifold can control 64 double solenoid or 128 single solenoid valves at one time. Manifold blocks come in sets of four with internal wiring.

  • Valve stations and Number of outputs: For 4 to 64 stations and up to 128 points
  • Stations are only available in multiples of 4.
  • Space saving, Reduced number of SI units, Reduced wiring and wiring work
  • Condenses up to 4 original sized manifolds into one with a 10% reduction in total size.
