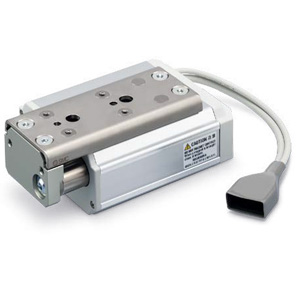

LE2SH High Performance, High Rigidity Slide Table for Manifold Controller

The LE2S electric actuator combines a motor and ball screw drive, worktable, and linear guide in a compact body. The formed sheet metal table allows a lower mounting surface height, lighter weight, and greater vertical work load than the LE2SH slide table. Motor orientations include right, left, and inline mounted. This version includes a higher performance 24VDC motor than the original LES, with a battery-less absolute encoder. This motor can sustain higher speeds while transporting similar workloads. Pushing forces are also higher. The encoder allows the actuator to be powered down without losing its positional awareness. LE2 actuators are compatible with the JXD1-M manifold controller, with a different cable connector and no compatibility with JXC controllers. The JXD1-M manifold controller can detect the actuator type, size and stroke when connected. The controller and cables are ordered separately, simplifying the part number.

  • Body sizes: 16, 25
  • Maximum work load: 5 kg (horizontal or vertical, size 25)
  • Maximum pushing force: 189 N (size 25)
  • Maximum speed: 550 mm/s (size 25)
  • Strokes: 30, 50, 75, 100, 125, 150mm
  • Positioning repeatability: ±0.05mm
LE2SH High Performance, High Rigidity Slide Table for Manifold Controller
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Size Configuration Status
Motor Mounting Position Configuration Status
Motor Type Configuration Status
Lead Configuration Status
Stroke Configuration Status
Motor Option Configuration Status
Body Option Configuration Status
Mounting Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
