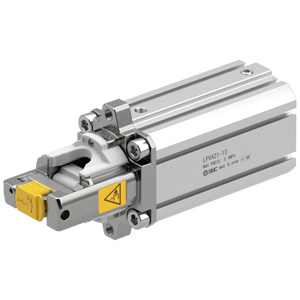

LPVA Air-Operated Pinch Valve

LPVA series is a pneumatically operated pinch valve. It was designed to have easy tube access by opening the cover and inserting the tube. LVPA can reduce work time by up to 40% with the quick tubing exchange versus existing models.

  • Port position can be 90, 180, or 270 degrees
  • Applicable tubing sizes are 3/8, 7/16, and 1/2
  • Can be normally open or normally closed
  • Tubing adaptor can be bought separately
LPVA Air-Operated Pinch Valve
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Valve Type Configuration Status
Tubing O.D. Size Configuration Status
Option (Port Position) Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
