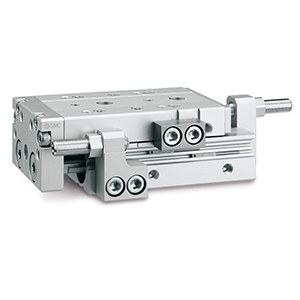

MXQ32-X2600, High Rigidity Air Slide Table

The MXQ32-X2600 is a high-rigidity air slide table engineered for applications requiring superior precision and heavy-duty load handling. Featuring a specialized 4-row circular arc groove linear guide, this unit provides the stability needed for demanding industrial environments.

  • Significant table displacement reduction (50% compared to MXQ25)
  • Enhanced Max Load Capacity: 16kg
  • Lightweight Aluminum Table
  • Stroke Length up to 150mm
  • Integrated Single-Sided Controls: For superior operability and space efficiency, the pilot port, stroke adjuster, and auto switch are all integrated on one side of the unit.
