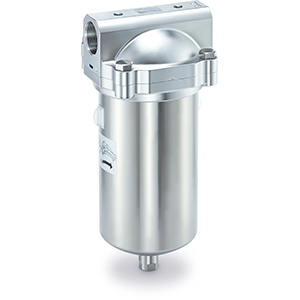

AFF70~90DS, Main Line Filter, Stainless Steel

The AFF70~90 series significantly improves upon the performance of the legacy AFF with a 1μm particulate rating and superior water removal capabilities. By integrating the traditional AFF filtering function with the water removal capabilities of the AMG, the overall installation space is substantially reduced. Additionally, flow capacities have been improved for broader applicability. The unit now features an all stainless-steel exterior, which provides enhanced environmental resistance for exceptional durability.

  • Particulate filtration, oil mist separation
  • Available port sizes: 1", 1-1/2", 2" (PT, NPT or G)
  • Nominal filtration rating: 0.01 μm (99% efficiency)
  • ISO8573-1 air quality class: 1; - ;2
AFF70~90DS, Main Line Filter, Stainless Steel
Configuration Options


Copy Configuration Number

Product Options

Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Size Configuration Status
Thread Configuration Status
Port Size Configuration Status
Drain Exhaust Configuration Status
Options in:
  • Gray are not compatible with other selected option value.
  • Red conflict with another selected option value.
  • Amber are not recommended.
