AZ3600, Diaphragm Valve, Manually Operated

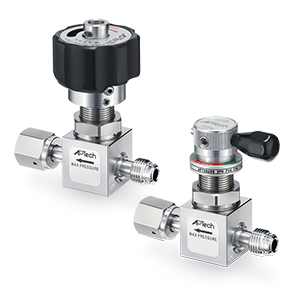

Series AZ3600 is an ultra high purity (UHP) diaphragm valve for gas delivery in semiconductor and other clean industries.  This series is available in manually operated and a pull twist knob with LOTO option.

  • Suitable for UHP gas supply line
  • Body material: 316L SS
  • LOTO standard with AZ3659 and AZP3657
  • Optional indicator switch for model AZ3650
