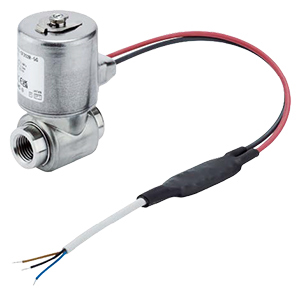

JSP-X, Proportional Control Valve with Driver Circuit, Ports 1/8-3/8 Inch

JSP-X series is a proportional control valve with driver circuit for general purpose air and water.  JSP-X uses the current to smoothly control the flow rate.  It has a standard stainless-steel enclosure to have superior resistance to both corrosion and water.  Internal stopper is utilized to reduce metal noise and longer service life.  General input signals from a PLC, etc., are converted into the valve drive current via the driver circuit.  JSP-X has the option to be either base mounted or body ported.

  • X12 and X13 provides a driver circuit which plugs into the PLC directly.
  • Standard stainless-steelbody, IP67 protection rating
  • 1/8" to 3/8" NPT, G, and Rc port
  • FKM seal material
  • 360-degree coil rotation
  • UL, and CE compliant
  • Available with DIN, Conduit and Grommet
