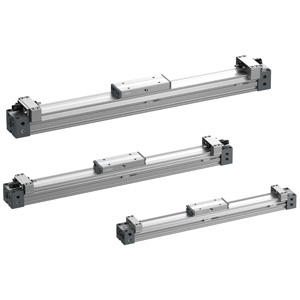

Rodless Cylinder, MY1B-*Z1, Mechanically Jointed - Basic Type

Description: MY1B-Z1 Mechanically Jointed Rodless Cylinder is a direct and powerful upgrade to the MY1B series. Maximum of 30% increase in load mass capacity and allowable moment to handle heavier payloads and increased durability. These improvements minimize wear and extend service life of cylinder.

  • Maximum 30% increase in load mass capacity
  • Maximum 30% increase in allowable moment
  • Same mounting dimensions as existing MY1B
  • Compact and Space Saving Design
